GitLab CI step by step

This guide takes a GitLab project from nothing to ScanSuite scans that gate merge requests and the default branch. Follow the steps in order the first time: each one is a few clicks, and at the end a pipeline fails on real vulnerabilities and you can see them both in GitLab and in ScanSuite. The recipes after that add nightly scans, release gates, DAST and container image scans.

Every screenshot and result below comes from a test run on GitLab CE 19 with a self-hosted runner, against a sample Flask application with known problems: SQL injection, command injection, path traversal, vulnerable dependencies and a committed GitHub token. The option reference for the client is in CI/CD and automation.

How it works

A GitLab job runs the ScanSuite CI client from the image appsec4u/scansuite-ci:1. The client packs the files Git tracks in the checkout, uploads them to your ScanSuite server, starts a scan and waits for it. The scan runs on the ScanSuite server, so the runner needs no scanners and little memory. When the scan ends, the client checks the results against the gate (by default: any High or Critical finding, or any secret new to the product), writes the reports and exits:

Before you start

Step 1. Create a token in ScanSuite

The pipeline signs in with the token of a service account, not with a person's password. A service account belongs to the team and keeps working when people leave it.

1. 01
   Open the Teams page

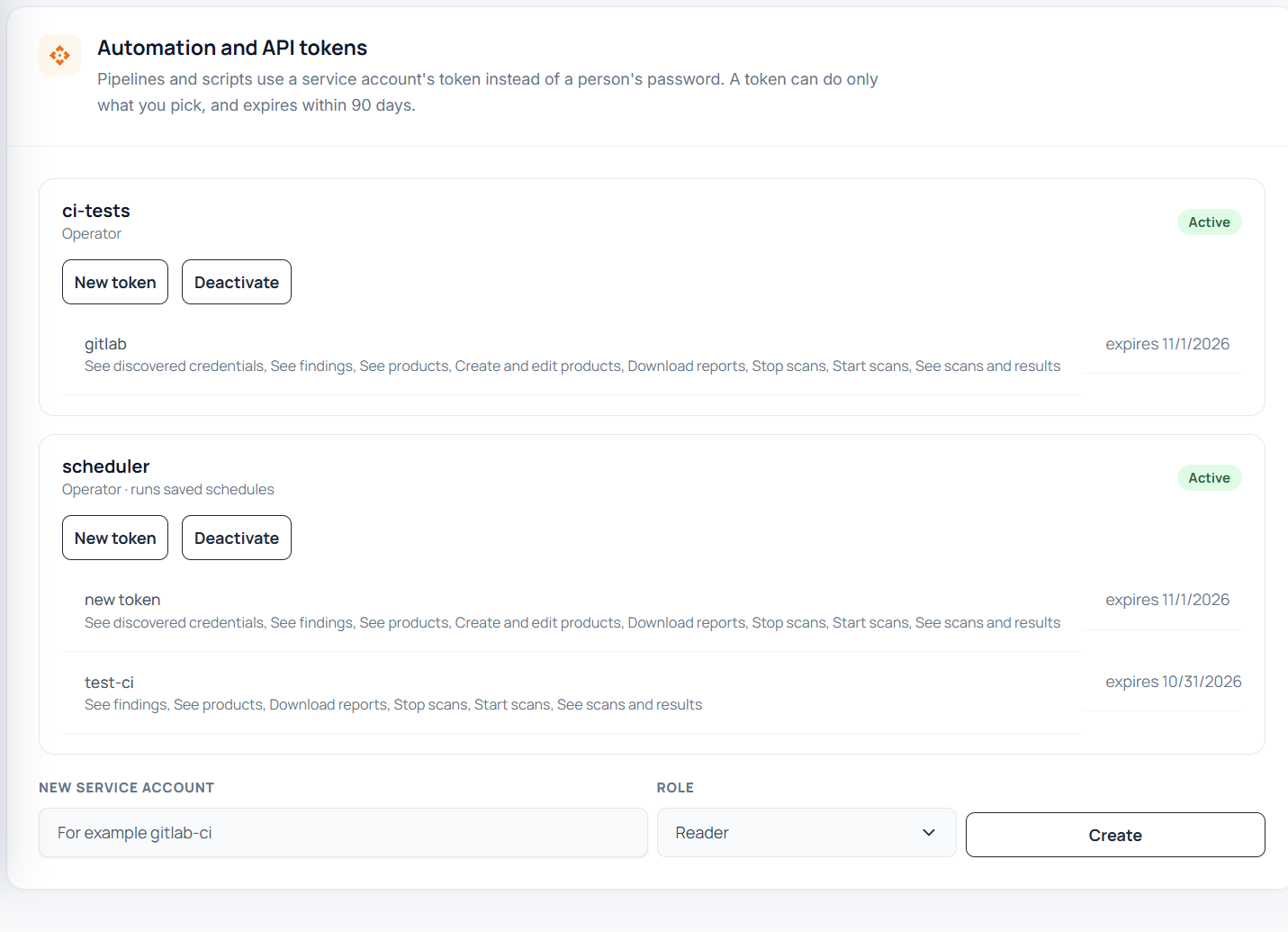

   Teams in the sidebar (Admin section), then the People tab. Scroll to Automation and API tokens.

2. 02
   Create a service account

   Under NEW SERVICE ACCOUNT, type a name such as gitlab-ci, set ROLE to Operator (the default, Reader, cannot start scans) and select Create.

3. 03

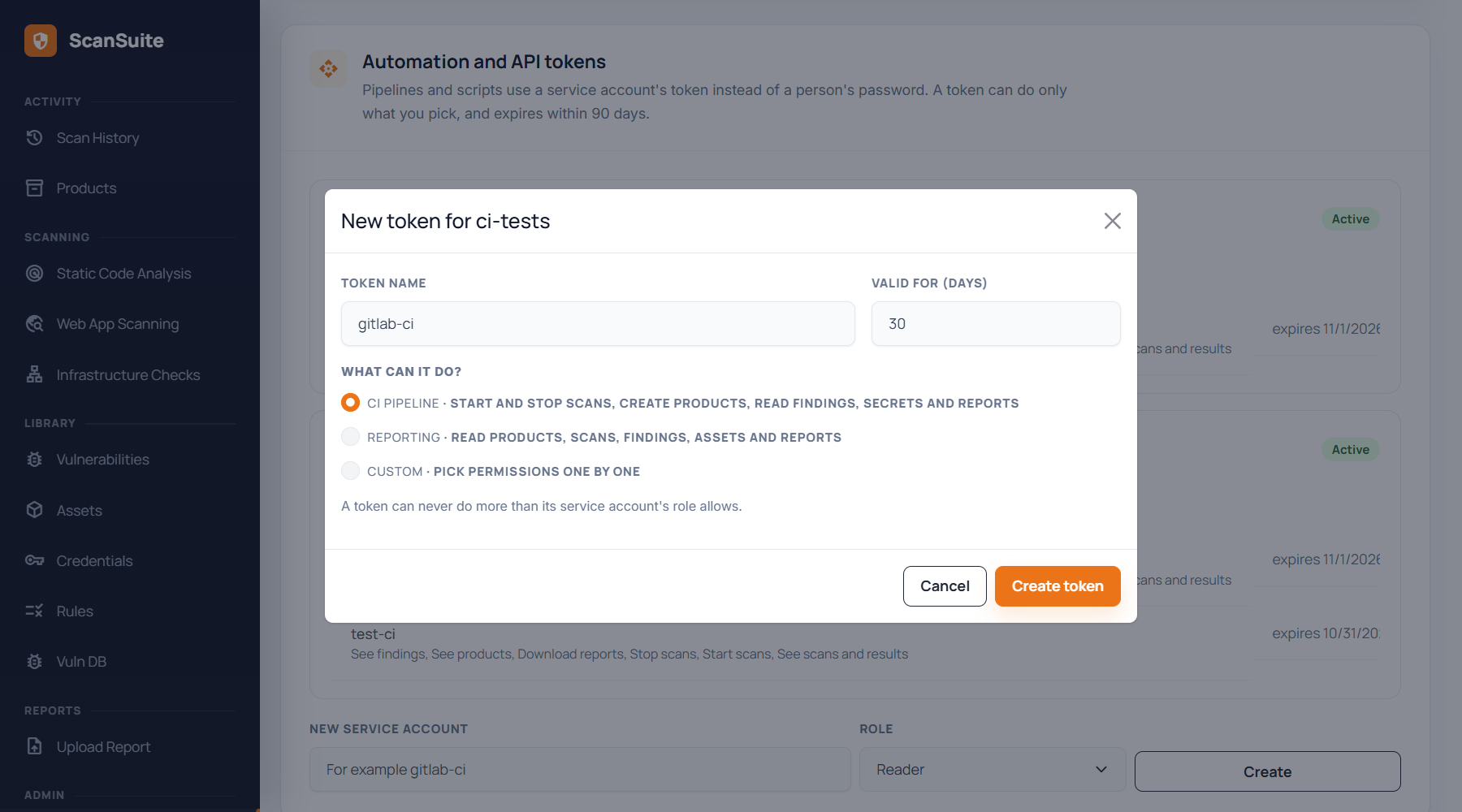

   Issue a token

   Select New token on the new account. Give it a name, a lifetime of up to 90 days, keep the CI pipeline preset and select Create token.

4. 04
   Copy the token

   It is shown once. Keep it in your clipboard for step 2; if you lose it, revoke it and issue another.

zoom_inEnlarge

zoom_inEnlarge

The CI pipeline preset gives the token what a pipeline needs and nothing more: start and stop scans, see scans, findings, products and discovered credentials, download reports, and create products. Each token is listed with its permissions and expiry date; the job log warns when the token expires within 14 days.

Step 2. Add the CI/CD variables in GitLab

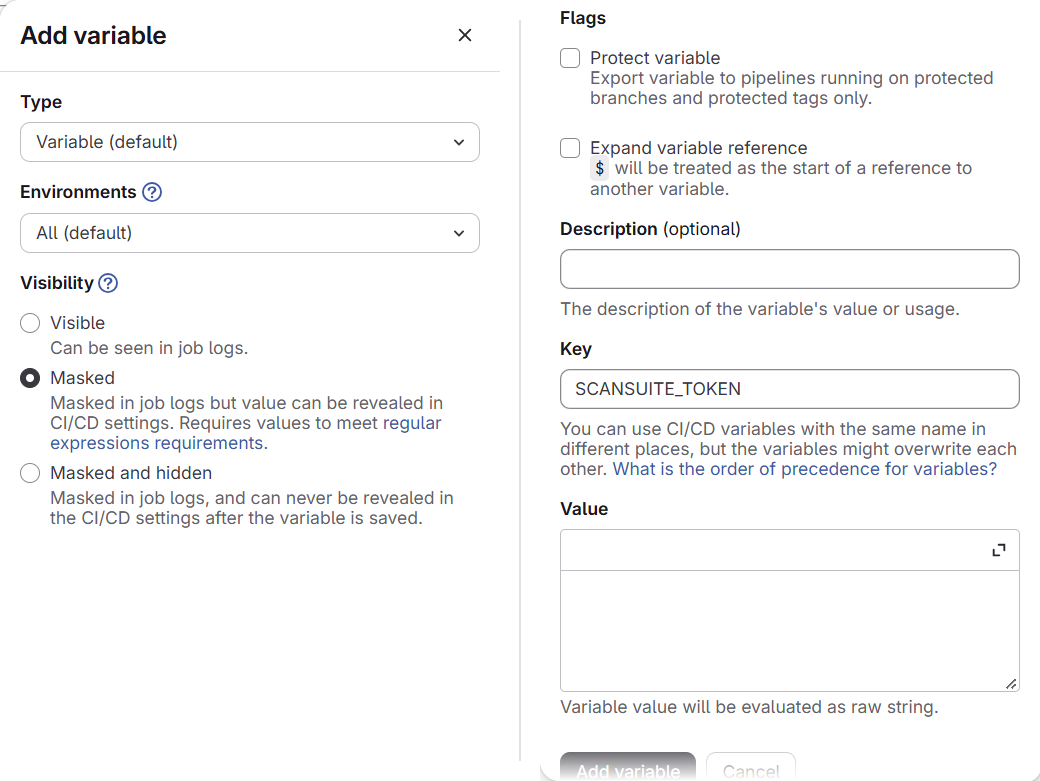

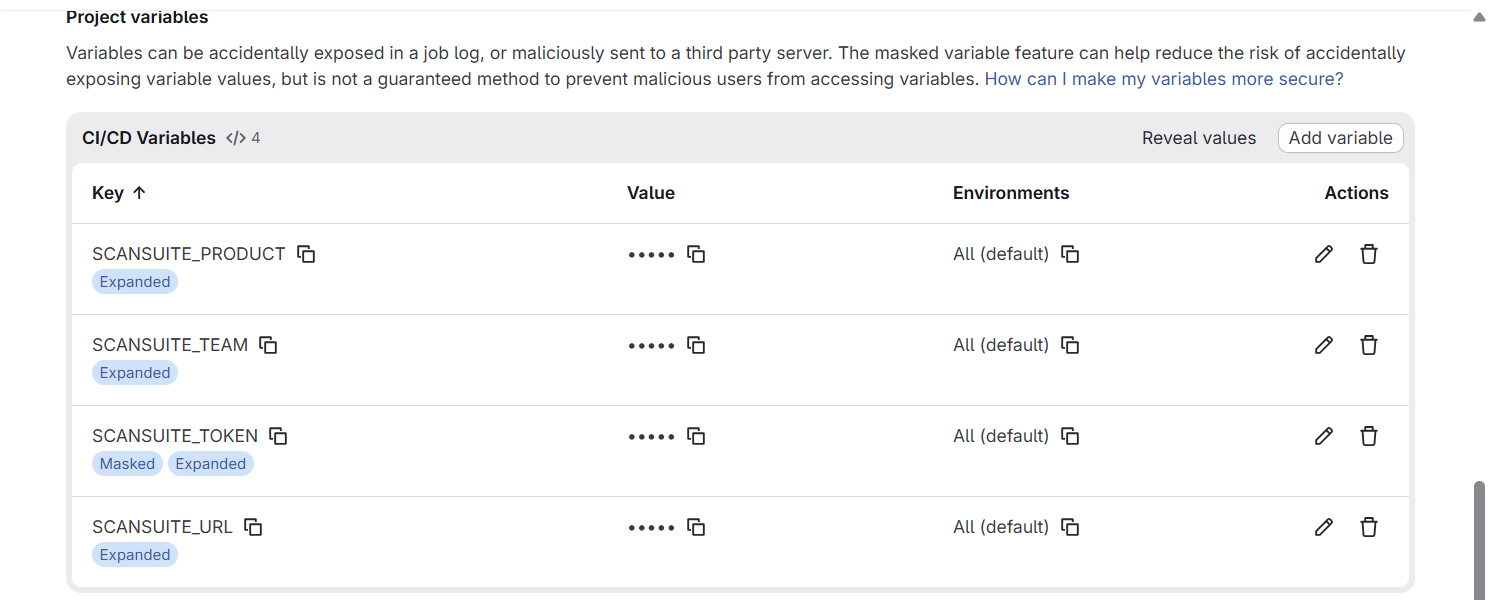

In the GitLab project: Settings → CI/CD → Variables → Add variable, once for each variable:

zoom_inEnlarge

zoom_inEnlarge

Variables set here apply to every job and win over variables written in .gitlab-ci.yml. Keep that in mind when one job should report to a different product: see Monorepo.

Step 3. Check the runner

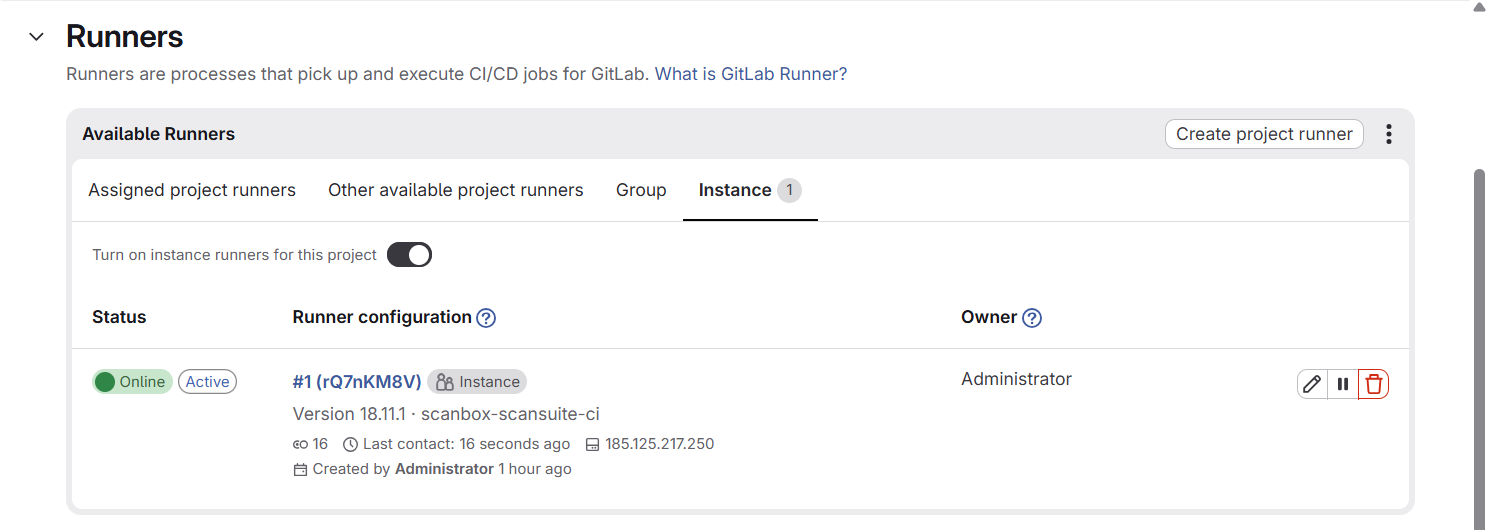

Settings → CI/CD → Runners lists the runners the project can use. One of them must be Online, use the Docker executor, and run untagged jobs. If your runners only take tagged jobs, add the tag to the template's hidden job in your .gitlab-ci.yml:

.scansuite:
  tags: [docker]

zoom_inEnlarge

Step 4. Add the pipeline

Your ScanSuite server serves a GitLab CI template that always matches its version. Add this to .gitlab-ci.yml in the root of the repository (create the file if the project has none), with your server's address:

include:
  - remote: 'https://scansuite.example.com/ci/scansuite.gitlab-ci.yml'

That adds two jobs in the test stage:

Commit the file to the default branch. The push starts the first pipeline.

Step 5. Read the result in GitLab

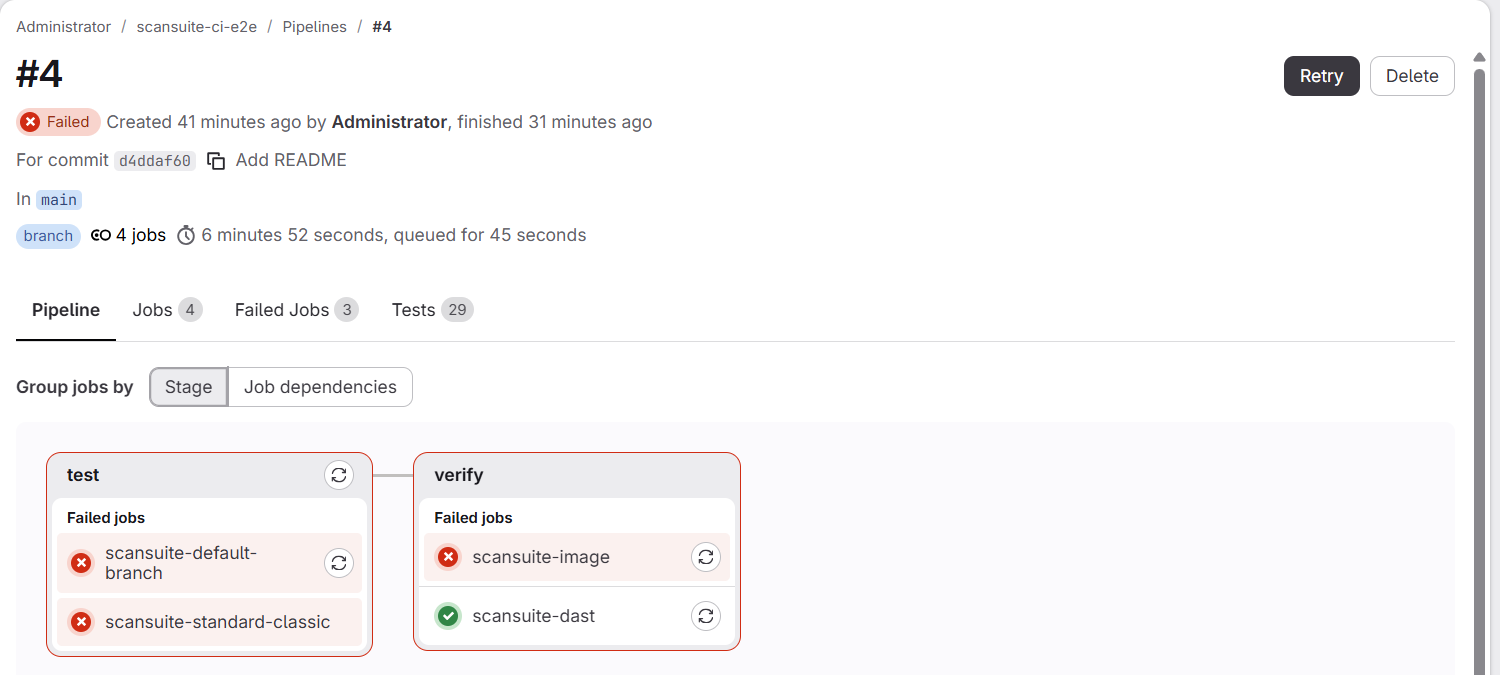

Open Build → Pipelines and the newest pipeline. In the test run the default branch job took three minutes and failed, as it should on this application:

zoom_inEnlarge

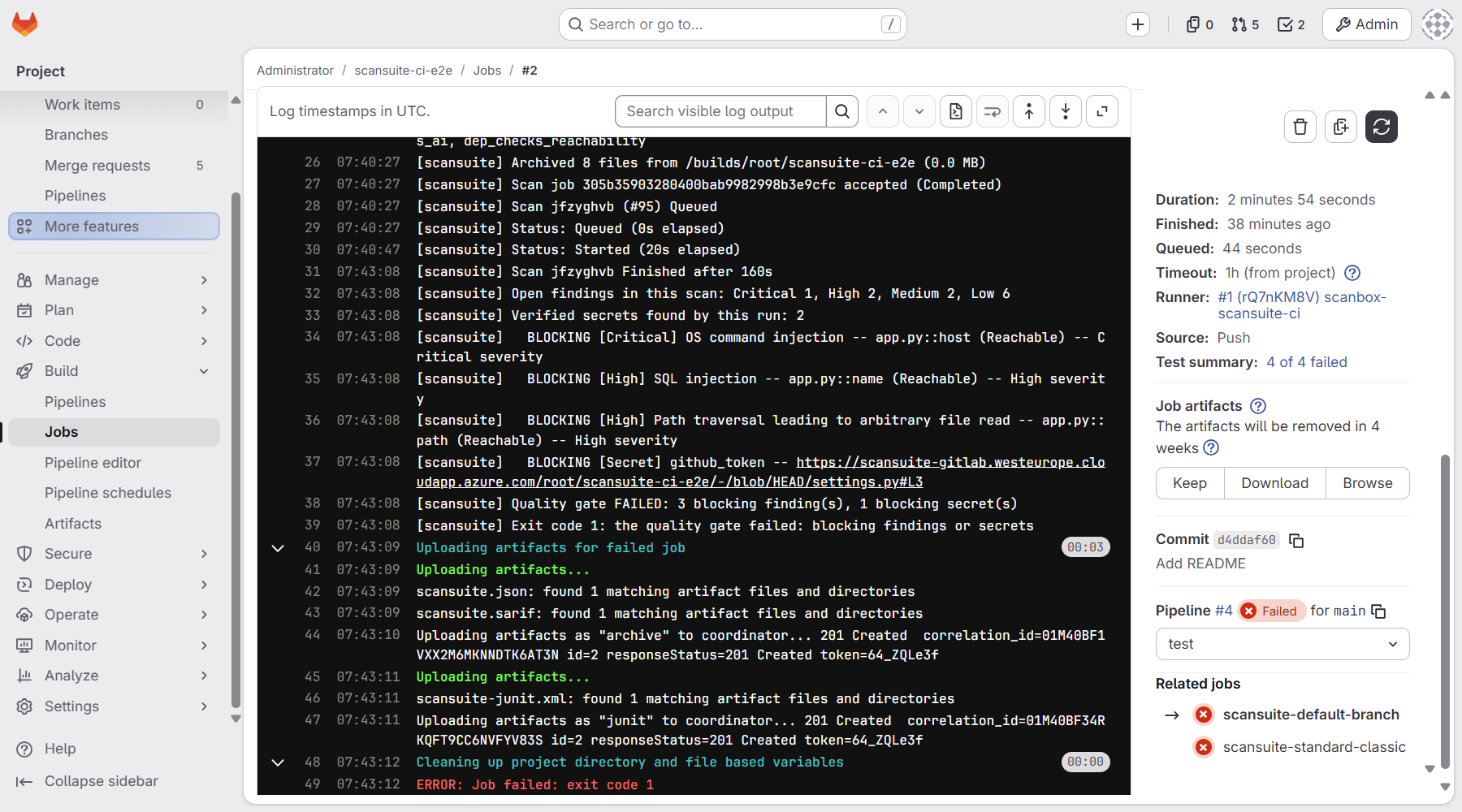

Open the failed job. The end of its log says what the scan found and why the job failed:

zoom_inEnlarge

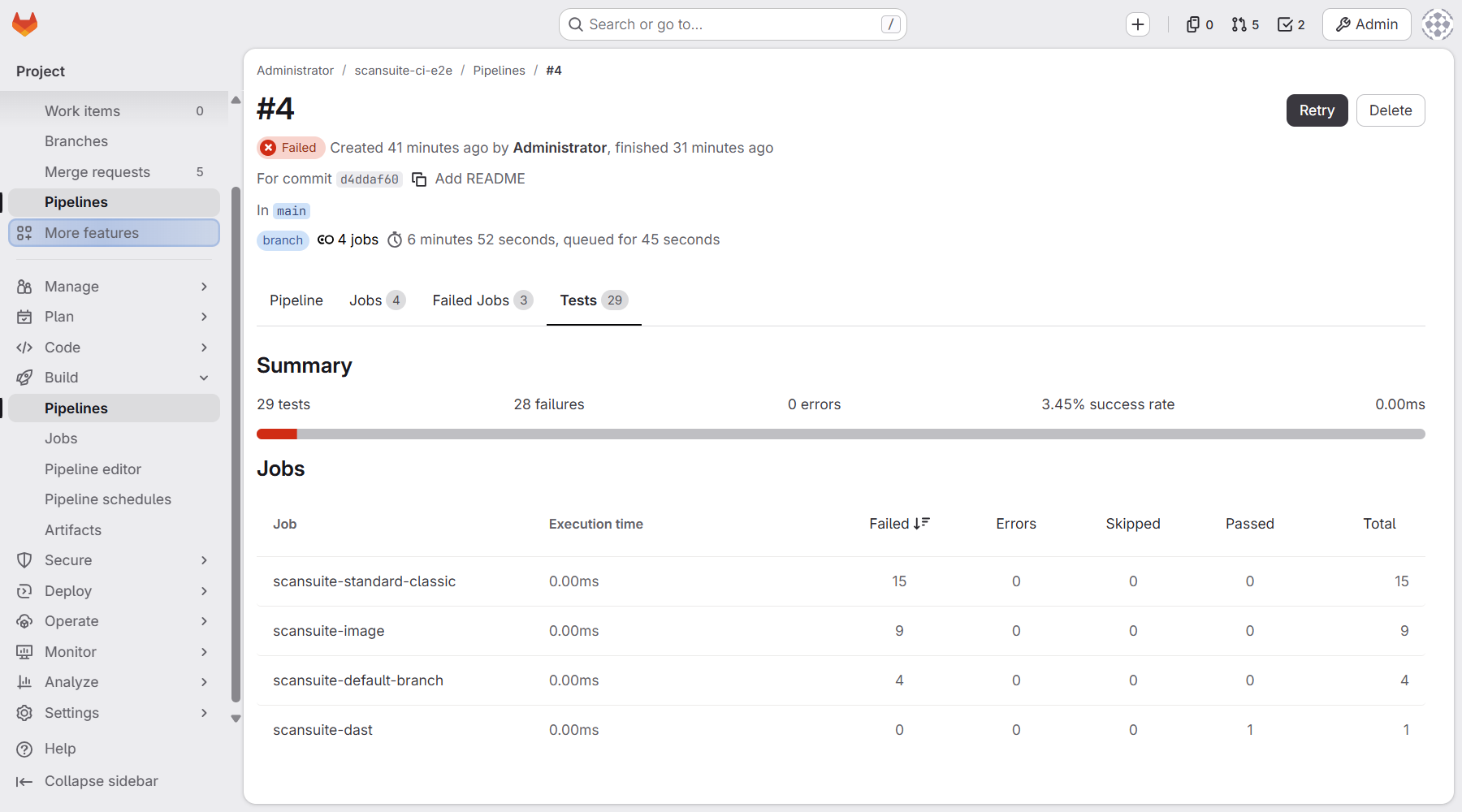

The pipeline's Tests tab shows each blocking finding as a failed test, per job. Download or Browse under Job artifacts on the job page gives the JSON and SARIF reports.

zoom_inEnlarge

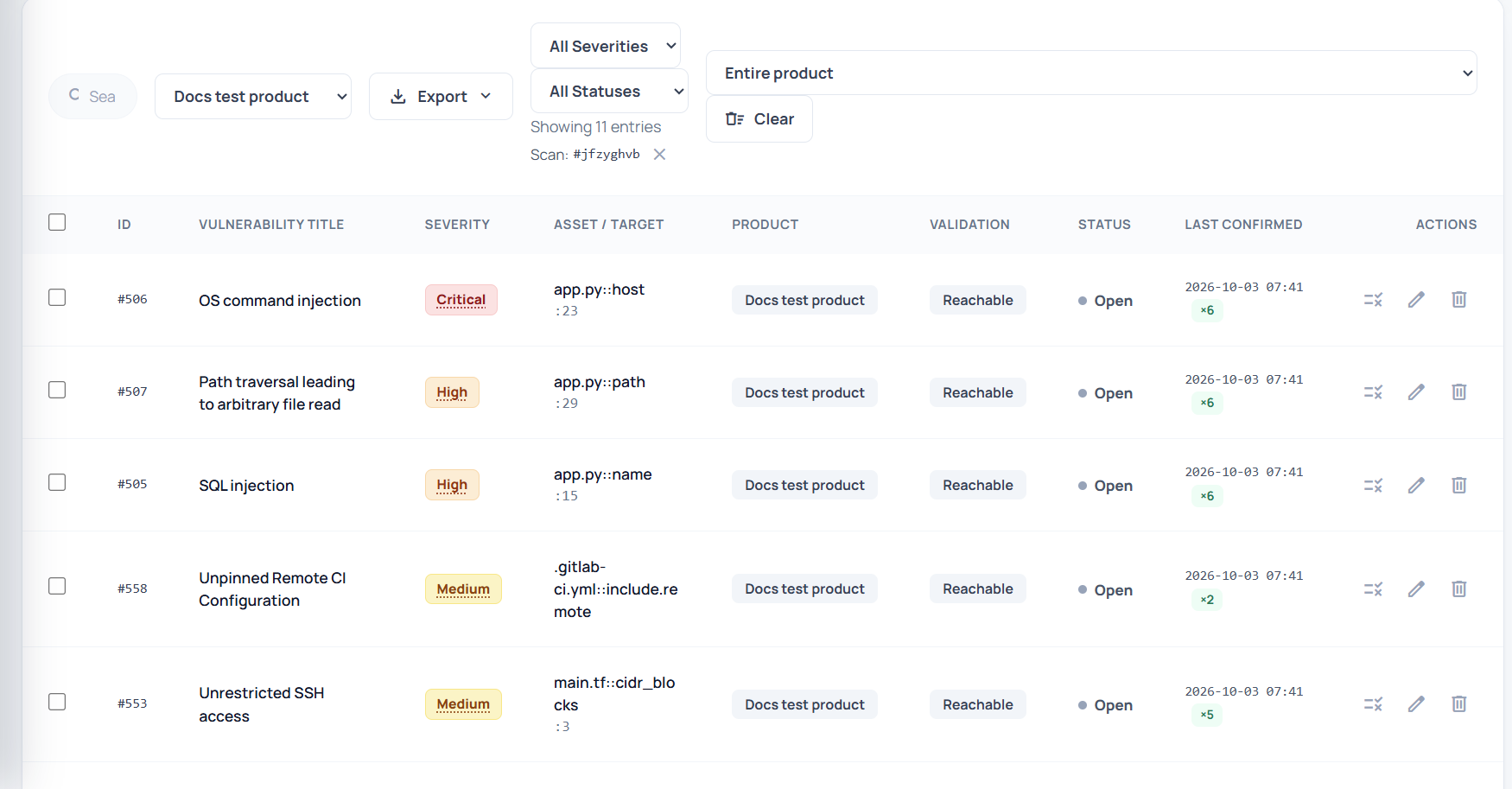

Step 6. See the findings in ScanSuite

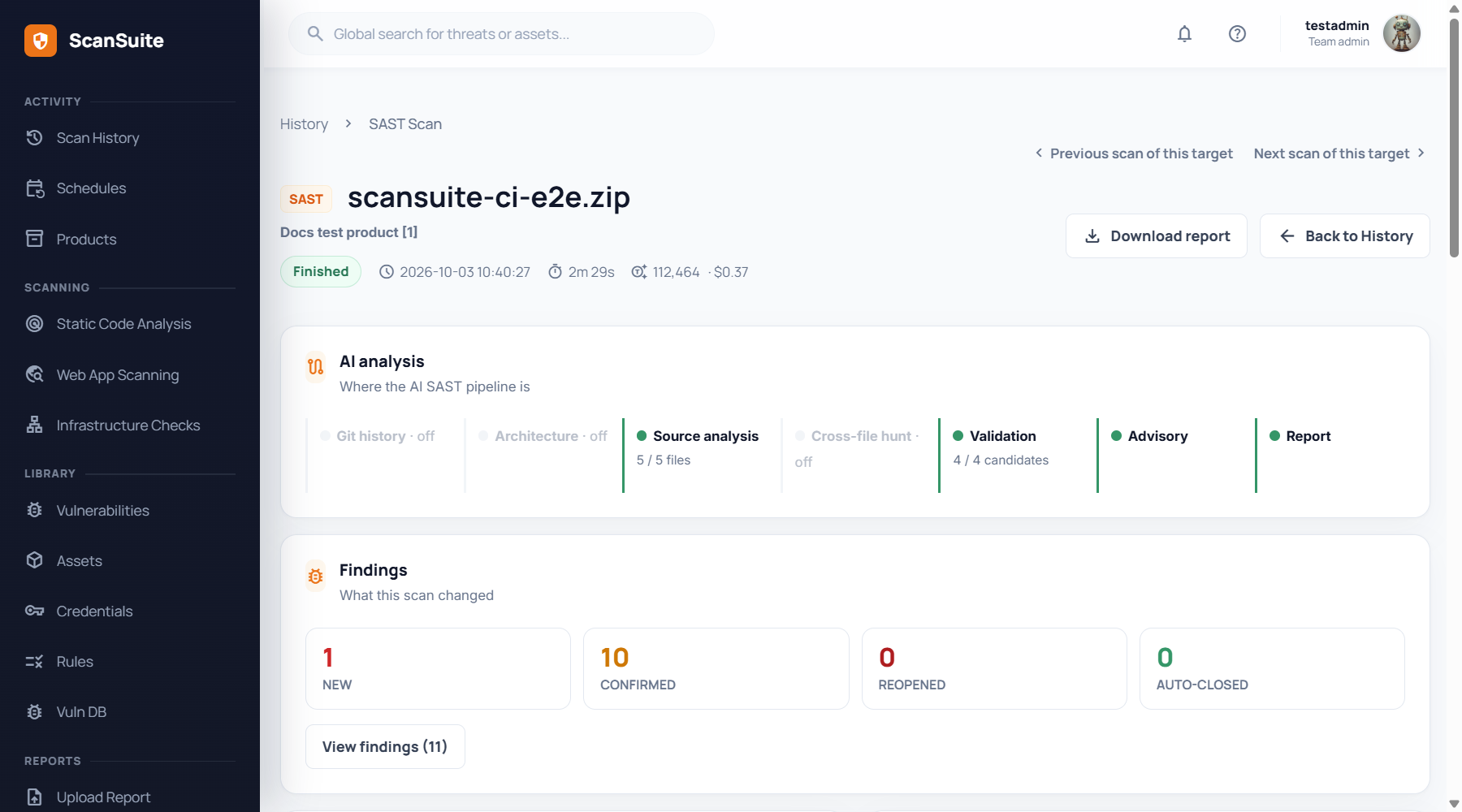

Every pipeline scan is an ordinary scan of the product: it appears in Scan History under the name of the project's archive, for example scansuite-ci-e2e.zip. Its page shows what the scan changed, and View findings lists them with severity, location and reachability. Triage there as usual: the gate counts only findings that are Open or In Progress, so a finding you close as a false positive or accepted risk no longer fails the next pipeline.

zoom_inEnlarge

zoom_inEnlarge

Findings link to the file and line in GitLab at the scanned commit, because the client sends the repository address and commit with the upload.

Gate merge requests

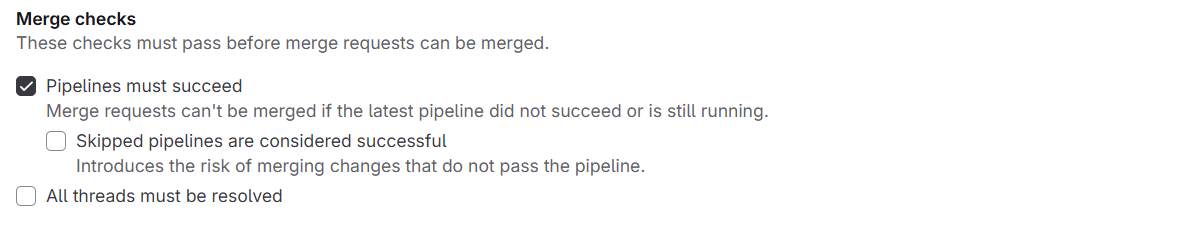

A failed job blocks merging only when the project asks for it: Settings → Merge requests → Merge checks → Pipelines must succeed.

zoom_inEnlarge

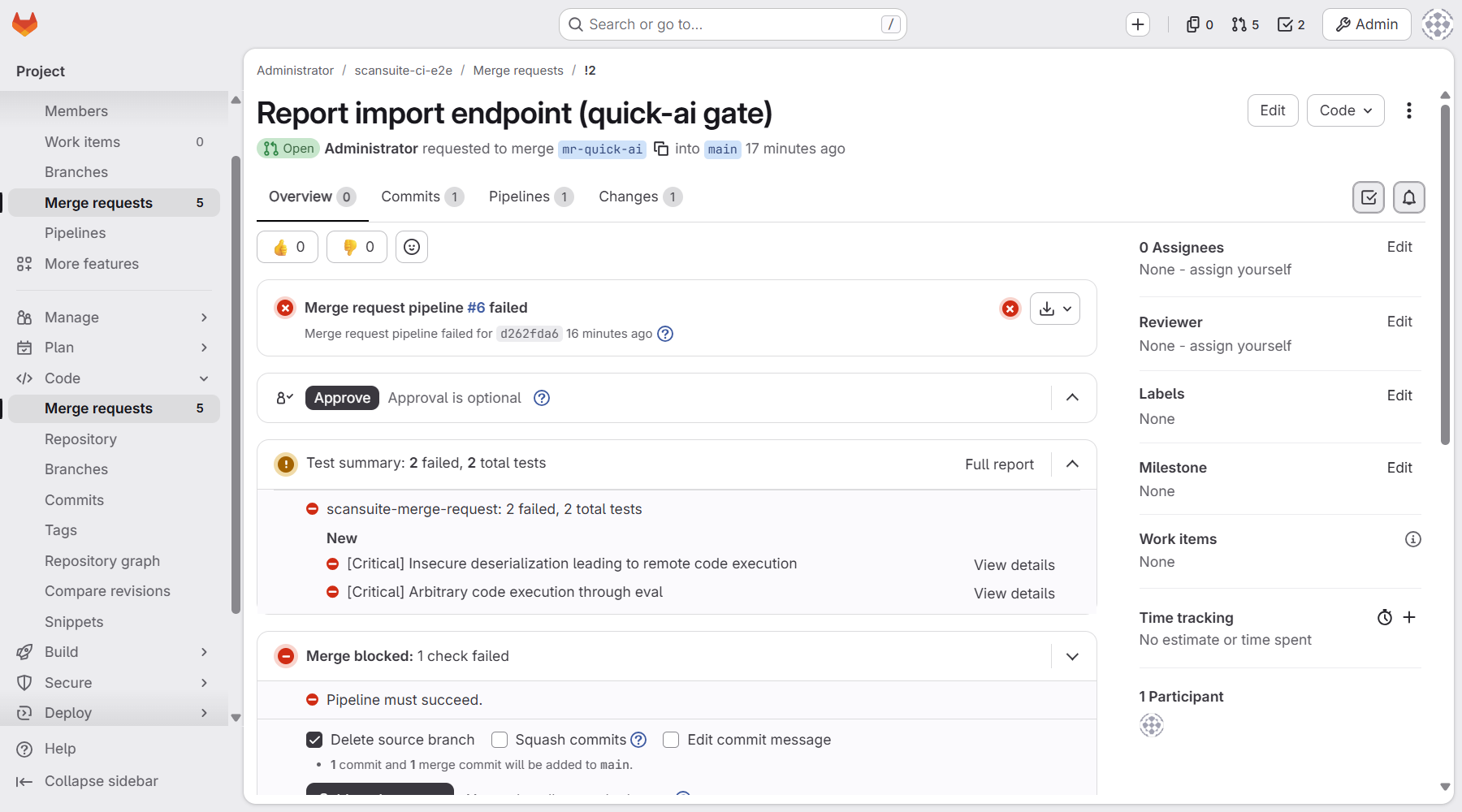

The merge request then shows the blocking findings as failed tests and refuses to merge until a pipeline passes:

zoom_inEnlarge

Choose the merge request scan with care. In the test, a branch added pickle.loads on request data and an eval of a query parameter:

If your team has AI set up, make quick-ai the merge request gate. Both scan only the changed files; secrets and dependency checks need the whole repository and run on the default branch.

include:
  - remote: 'https://scansuite.example.com/ci/scansuite.gitlab-ci.yml'

scansuite-merge-request:
  variables:
    SCANSUITE_PROFILE: quick-ai

A merge request that changes only files you exclude (for example SCANSUITE_EXTRA_ARGS: --exclude docs/*) passes at once: there is nothing to scan.

Choose what to scan, and when

Set the bundle with SCANSUITE_PROFILE on a job. On the sample application, standard-ai blocked on 3 findings (the injections and the path traversal, all confirmed reachable) and one verified secret; standard-classic blocked on 15, including the same injections found by several Semgrep rules and the vulnerable pyyaml, flask, jinja2 and requests versions.

Tune the gate

Each option is a variable you can set on a job (or for the whole project):

In the test, SCANSUITE_FAIL_ON_SEVERITY: critical with SCANSUITE_BLOCK_CLASS: sql_injection,command_injection,code_injection still failed the job on the High SQL and command injections; the log marks them blocked class sql_injection instead of High severity.

Recipes

Each recipe is a job to add to .gitlab-ci.yml under the include. Jobs extend the template's hidden .scansuite job, which brings the image, the reports and the artifacts.

DAST and container image scans

Run them in a later stage, after the deployment and the image build. needs: [] lets them start even when a static scan failed the build; without it GitLab skips them, which is exactly when you want them.

stages: [test, verify]

scansuite-dast:
  extends: .scansuite
  stage: verify
  needs: []
  variables:
    SCANSUITE_SCAN_TYPE: dast
    SCANSUITE_TARGETS: https://staging.example.com
    SCANSUITE_PROFILE: quick
    SCANSUITE_FAIL_ON_SEVERITY: critical
  rules:
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH && $CI_PIPELINE_SOURCE != "merge_request_event"

scansuite-image:
  extends: .scansuite
  stage: verify
  needs: []
  variables:
    SCANSUITE_SCAN_TYPE: infra
    SCANSUITE_TARGETS: registry.example.com/shop/api:$CI_COMMIT_SHORT_SHA
    SCANSUITE_EXTRA_ARGS: --scanners docker_image_scan
    SCANSUITE_FAIL_ON_SEVERITY: critical
  rules:
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH && $CI_PIPELINE_SOURCE != "merge_request_event"

DAST and infrastructure targets must be allowed for the team: Teams page, Scanning tab, Web targets and Infrastructure targets. A target outside them stops the job with exit code 3 before a scan starts. In the test the image job failed on 9 Critical CVEs in python:3.8-slim, and the DAST job passed: it found High and Medium issues, below its critical threshold.

Nightly full scan

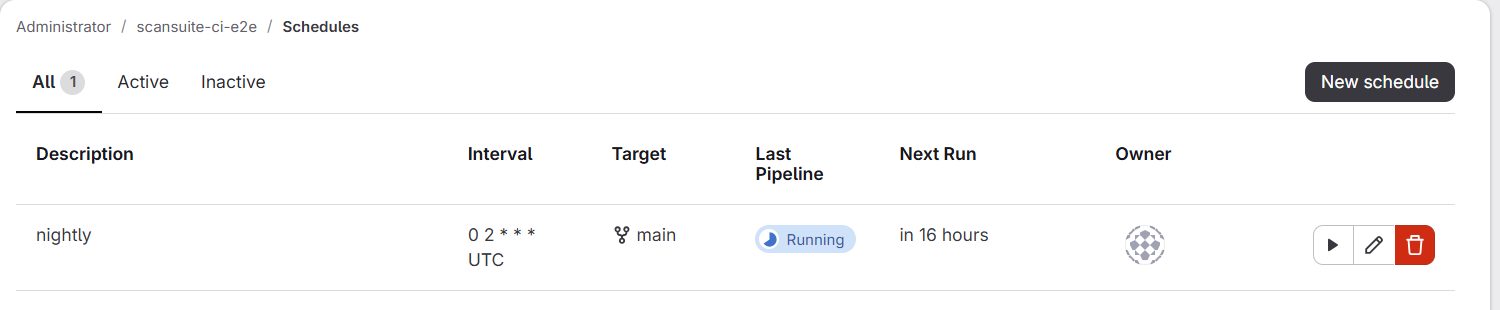

Create the schedule in Build → Pipeline schedules, then add the job. full-ai analyses Git history, so the job fetches all of it.

scansuite-nightly:
  extends: .scansuite
  variables:
    SCANSUITE_PROFILE: full-ai
    GIT_DEPTH: "0"
    SCANSUITE_MAX: high=0,critical=0,medium=10
    SCANSUITE_TIMEOUT: "14400"
  rules:
    - if: $CI_PIPELINE_SOURCE == "schedule"

zoom_inEnlarge

SCANSUITE_MAX is a budget: no High or Critical findings, up to ten Medium. In the test the nightly scan reported 2 Critical, 3 High and 2 Medium findings; the 5 High and Critical ones failed the job, the Medium ones stayed within the budget.

Release gate on tags

Stricter than the merge request gate, limited to what is reachable, counting every secret the product has, and keeping the full report with the release:

stages: [test, release]

scansuite-release:
  extends: .scansuite
  stage: release
  variables:
    SCANSUITE_PROFILE: standard-ai
    SCANSUITE_FAIL_ON_SEVERITY: medium
    SCANSUITE_MIN_CONFIDENCE: reachable
    SCANSUITE_FAIL_ON_SECRETS: all
    SCANSUITE_EXTRA_ARGS: --report-zip scansuite-report.zip
  artifacts:
    when: always
    paths: [scansuite-report.zip, scansuite.json]
  rules:
    - if: $CI_COMMIT_TAG

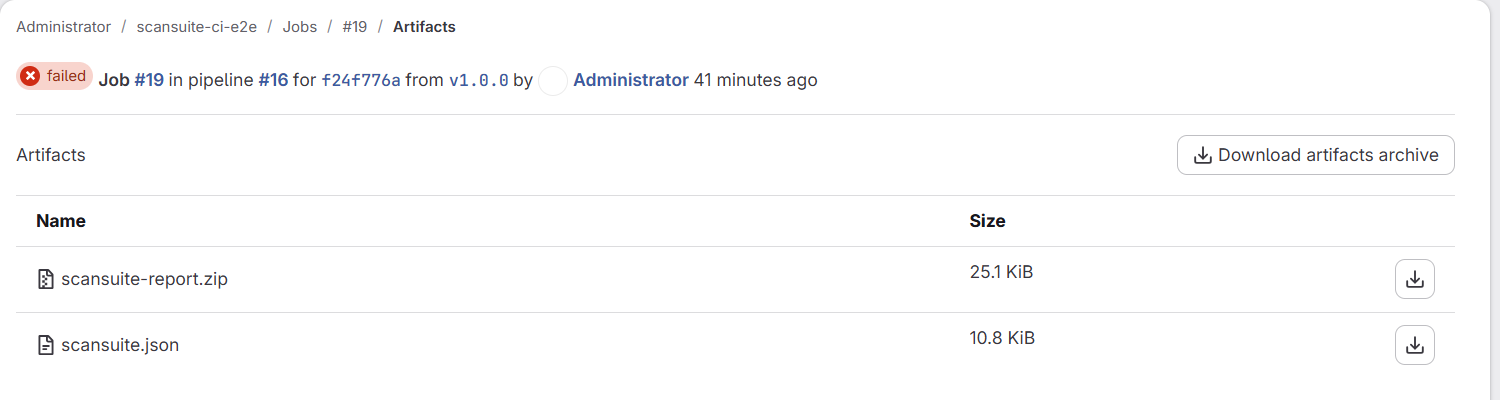

Create the tag in Code → Tags or push it. In the test the release job failed on six reachable findings, down to Medium: the injections, an SSH ingress open to the Internet in main.tf and the unpinned remote include, plus the committed GitHub token, which counts with all even though earlier scans already knew it. The report archive stays with the job:

zoom_inEnlarge

Monorepo: one product per service

One job per service folder, each reporting to its own product, created on the first run. Pass the product as an option: a SCANSUITE_PRODUCT variable in the job would lose to the project's variable from step 2, and every service would report to the same product.

scansuite-services:
  extends: .scansuite
  parallel:
    matrix:
      - SERVICE: [payments, web]
  variables:
    SCANSUITE_PROFILE: quick-classic
    SCANSUITE_CHANGED_ONLY: "1"
    SCANSUITE_EXTRA_ARGS: --source-dir services/$SERVICE --product-name $SERVICE --create-product
  rules:
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"

GitLab runs one job per service, scansuite-services: [payments] and scansuite-services: [web]. The first run of each logs Created product …; every log then starts with the product it reports to (in the test, with the products named e2e-$SERVICE: Team default, product e2e-payments (#10)). A merge request changed both services: the payments job failed on a SQL injection and the web job passed, so the merge request was blocked by one service only.

Create the product on the first run

For a new repository, let the pipeline create the product instead of preparing it in ScanSuite (the CI pipeline preset allows it). Set it on the hidden job so every job inherits it:

.scansuite:
  variables:
    SCANSUITE_EXTRA_ARGS: --product-name $CI_PROJECT_NAME --create-product

The first run logs Created product scansuite-ci-e2e (#12); later runs find it. A job that sets its own SCANSUITE_EXTRA_ARGS replaces this value, so repeat both options there. Alternatively, set SCANSUITE_CREATE_PRODUCT to 1 next to SCANSUITE_PRODUCT in the project's variables.

Roll out without blocking anyone

Scan and publish the reports, but never fail the pipeline, while the team gets used to the results:

scansuite-default-branch:
  variables:
    SCANSUITE_FAIL_ON_SEVERITY: none
    SCANSUITE_FAIL_ON_SECRETS: none

To keep failing on findings but not on a ScanSuite outage, add SCANSUITE_EXTRA_ARGS: --soft-fail instead. In the test, with the server unreachable, the client retried for about a minute, then logged --soft-fail: exiting 0 instead of 5 and the job passed.

Large repository: let the server clone it

By default the runner uploads the checkout. For a large repository, let the ScanSuite server clone the branch itself instead; with --mode incremental it then scans only what changed since its last scan of that branch.

1. 01
   Make a key pair for ScanSuite

   For example ssh-keygen -t ed25519 -N "" -f scansuite-deploy. Use it only for this.

2. 02
   Give GitLab the public half

   In the project: Settings → Repository → Deploy keys → Add new key, with scansuite-deploy.pub. Leave write access off.

3. 03
   Give ScanSuite the private half

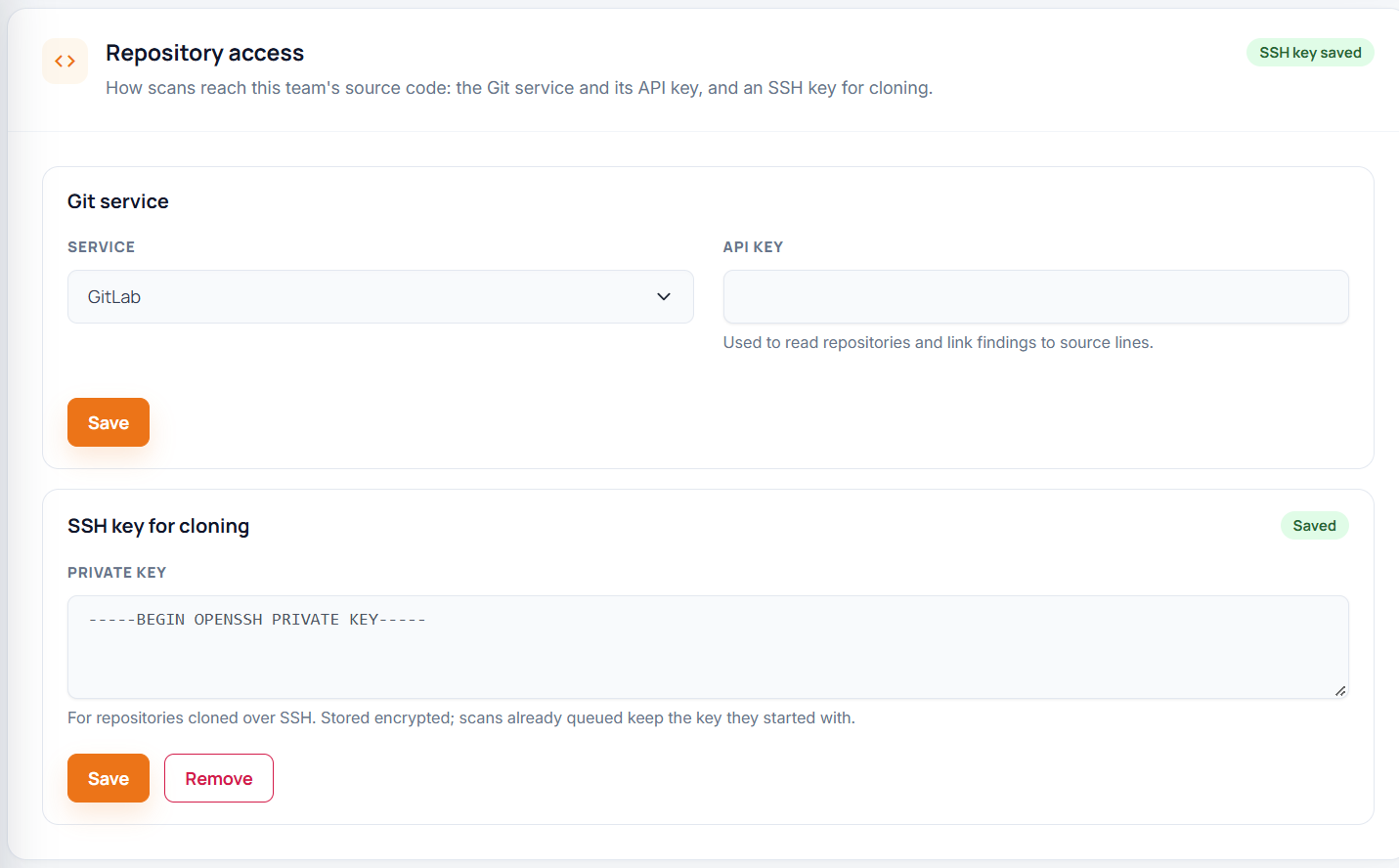

   Teams page → Scanning tab → Repository access → SSH key for cloning: paste the content of scansuite-deploy and Save. Then delete the file.

4. 04
   Add the job

   With the SSH address of the project. A GitLab whose SSH port is not 22 needs the ssh:// form with the port, as below.

zoom_inEnlarge

scansuite-incremental:
  extends: .scansuite
  variables:
    SCANSUITE_SOURCE: git
    SCANSUITE_GIT_URL: ssh://git@gitlab.example.com:2222/$CI_PROJECT_PATH.git
    SCANSUITE_PROFILE: standard-ai
    SCANSUITE_EXTRA_ARGS: --mode incremental
  rules:
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH

The log names the source as ssh://…/scansuite-ci-e2e.git @ main (the server clones the branch head, not necessarily …): the server scans the branch as it is when the scan starts, which can be newer than the pipeline's commit. In the test the first run cloned and scanned the whole branch (and failed on the planted findings); the second logged Nothing to scan: … no new commits since successful scan hzyljnog and passed in 13 seconds.

The server trusts the Git server's SSH host key the first time it clones and refuses a changed key afterwards. If GitLab is reinstalled or moved and its host key changes, clones stop with could not resolve the remote revision: @@@@… until a ScanSuite administrator removes the old key from /var/tmp/scansuite/git-auth/known_hosts in the worker container.

Without the template

If you cannot include a remote file, write the job yourself. Clear the image's entrypoint, because GitLab runs its own shell in the container:

scansuite:
  stage: test
  image:
    name: appsec4u/scansuite-ci:1
    entrypoint: [""]
  variables:
    GIT_DEPTH: "50"
  script:
    - scansuite-ci --profile quick-classic --changed-only --junit scansuite-junit.xml --sarif scansuite.sarif
  artifacts:
    when: always
    reports: { junit: scansuite-junit.xml }
    paths: [scansuite.sarif]
  rules:
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"

AI scans one scanner at a time

--scanners and --options replace a bundle's choice. Pass them in SCANSUITE_EXTRA_ARGS:

# AI SAST with every option
scansuite-ai-sast:
  extends: .scansuite
  variables:
    GIT_DEPTH: "0"
    SCANSUITE_EXTRA_ARGS: >-
      --scanners mlsast
      --options mlsast_reachability,mlsast_security_architecture,mlsast_boundary_hunt,mlsast_git_history

# Dependencies: only CVEs AI confirmed reachable fail the job
scansuite-ai-deps:
  extends: .scansuite
  variables:
    SCANSUITE_MIN_CONFIDENCE: reachable
    SCANSUITE_EXTRA_ARGS: --scanners dep_checks --options dep_checks_reachability

# Secrets: only verified secrets new to the product fail the job
scansuite-ai-secrets:
  extends: .scansuite
  variables:
    SCANSUITE_FAIL_ON_SEVERITY: none
    SCANSUITE_FAIL_ON_SECRETS: new
    SCANSUITE_EXTRA_ARGS: --scanners secrets --options secrets_ai

In the test, the dependency job passed: requirements.txt pins versions with known CVEs (the classic scan failed on them), but AI found none of them reachable from the application's code. The secrets job passed too: the only verified secret was already known to the product, and new counts only secrets this product did not have.

The AI SAST job with every option took under four minutes on the sample application and failed on two Critical and three High findings across app.py and both services, each with the code location that makes it reachable.

Private CA

When the ScanSuite server's certificate comes from your own CA, commit the CA certificate and point the client at it. Without it the client warns and continues without verifying the certificate; SCANSUITE_STRICT_TLS: "1" makes that an error instead.

.scansuite:
  variables:
    SCANSUITE_CA_BUNDLE: ci/corp-root.pem

Troubleshooting

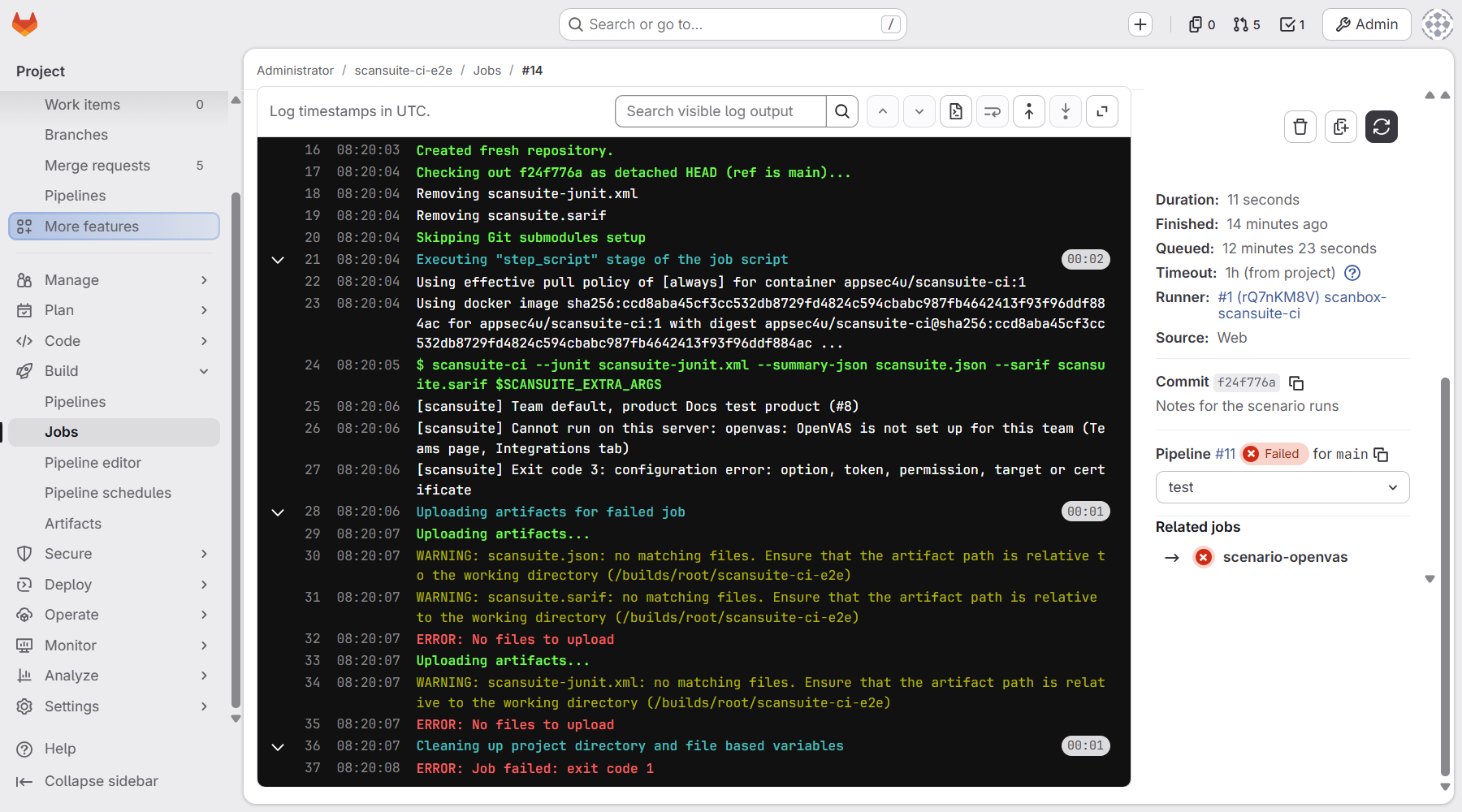

GitLab ends every failed job with ERROR: Job failed: exit code 1, whatever went wrong. The client's last [scansuite] line has the real exit code:

zoom_inEnlarge

Cancelling a job cancels its scan. When you cancel the pipeline in GitLab, the client stops the scan in ScanSuite before the job ends (Cancelled scan zbepcxtn (pipeline interrupted)), so a forgotten pipeline does not keep a scanner busy. When the client itself stops waiting (SCANSUITE_TIMEOUT, exit code 4), the scan keeps running unless you add --cancel-on-timeout.

The full option reference, including DAST authentication, infrastructure scan options and the other CI systems, is in CI/CD and automation.
